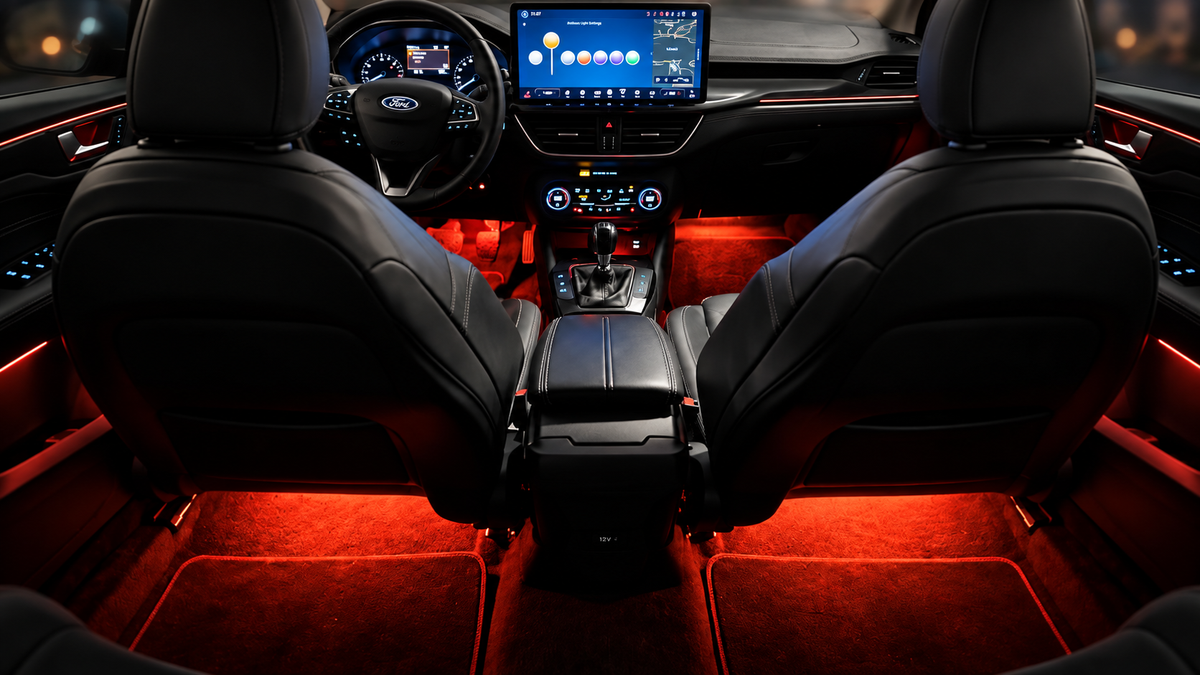

OEM+ Front & Rear Footwell Lighting Kit | Focus MK4/MK4.5

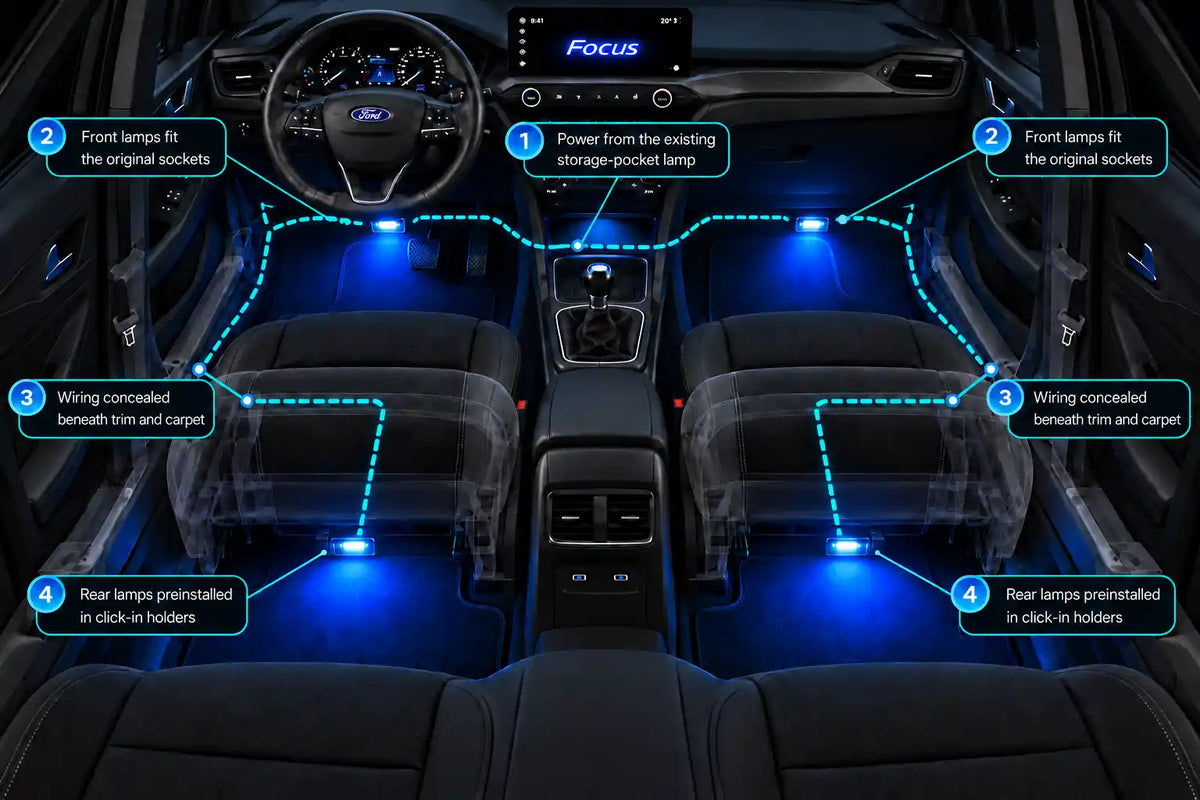

1. Remove the gearbox cover

   Remove the cover to access the storage-pocket lamp connection. This applies to both manual and automatic versions.

2. Connect the harness and front lamps

   Plug the supplied harness into the storage-pocket lamp connection. Route the wiring to both front footwells, then connect and clip the lamps into the original mounting slots.

3. Route the rear wiring

   Run the wiring along both sills, then use the supplied nylon pulling wire to guide it beneath the carpet to the area under each front seat.

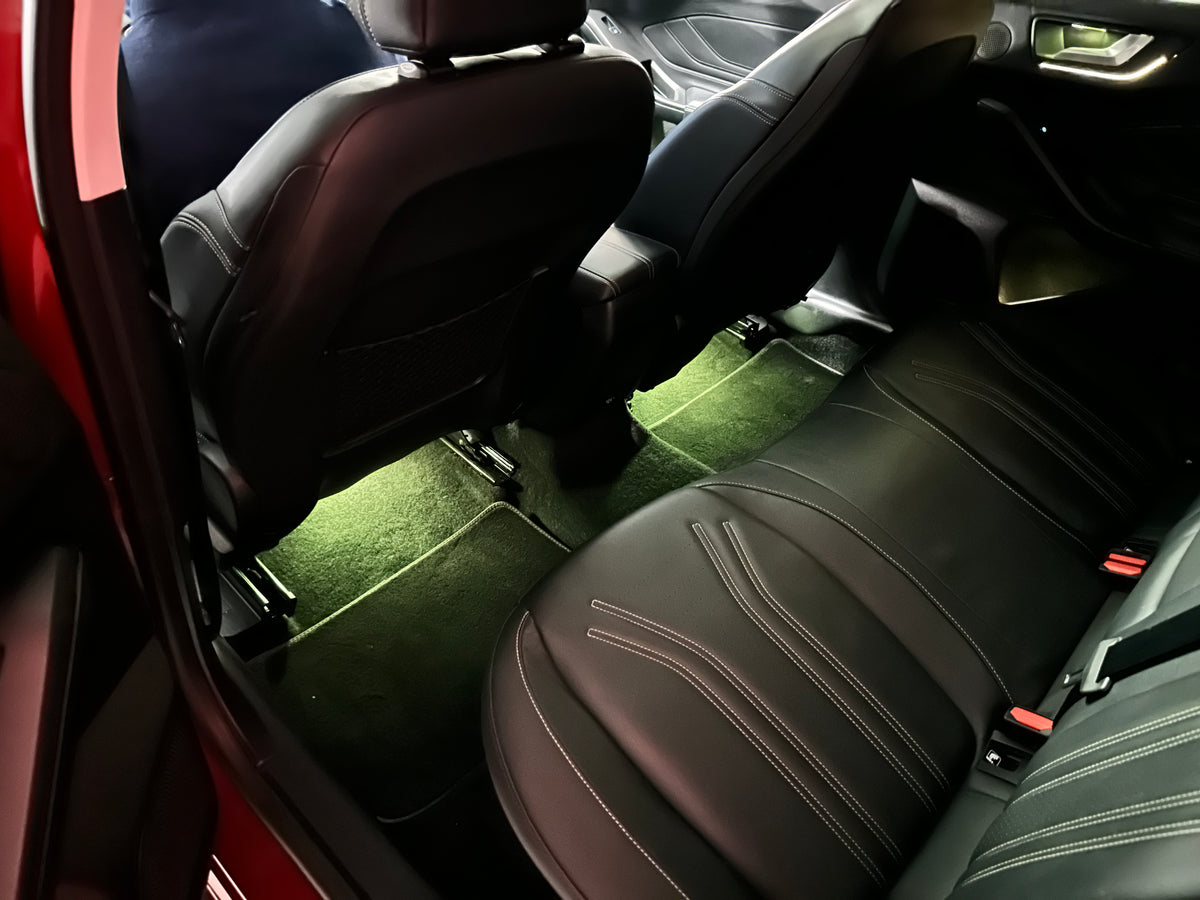

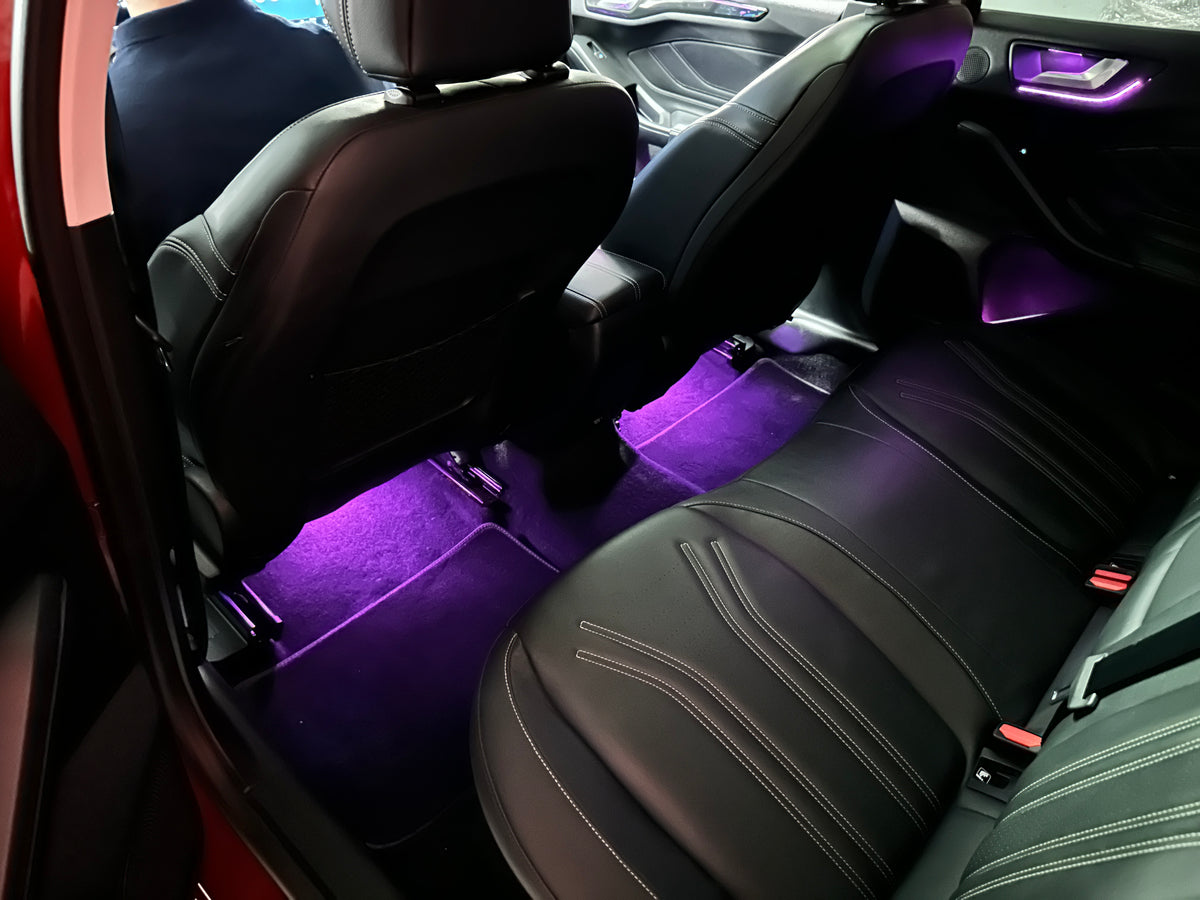

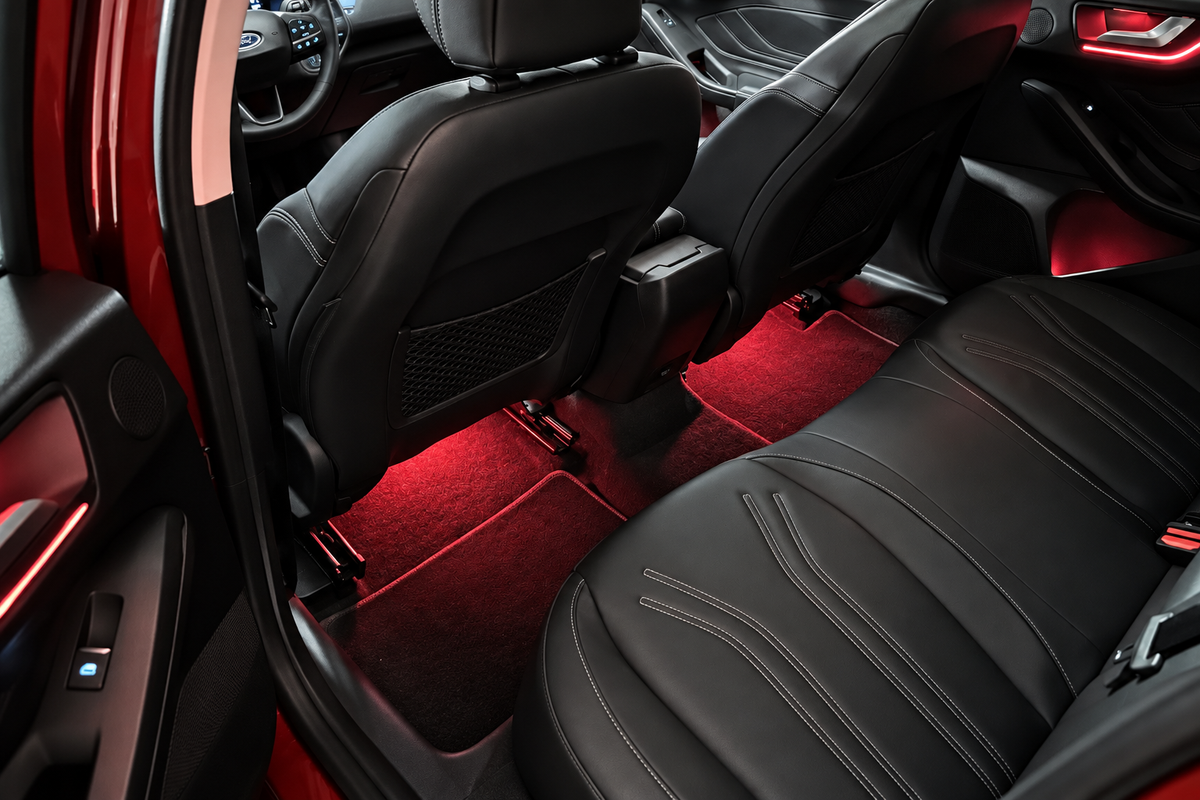

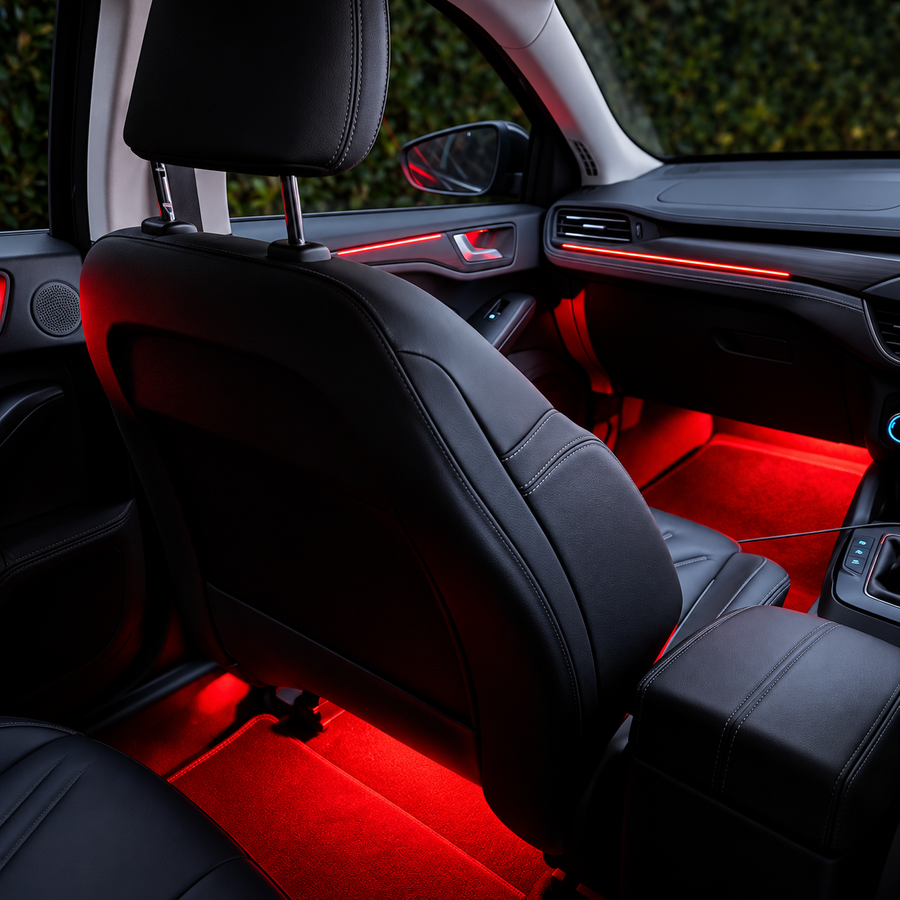

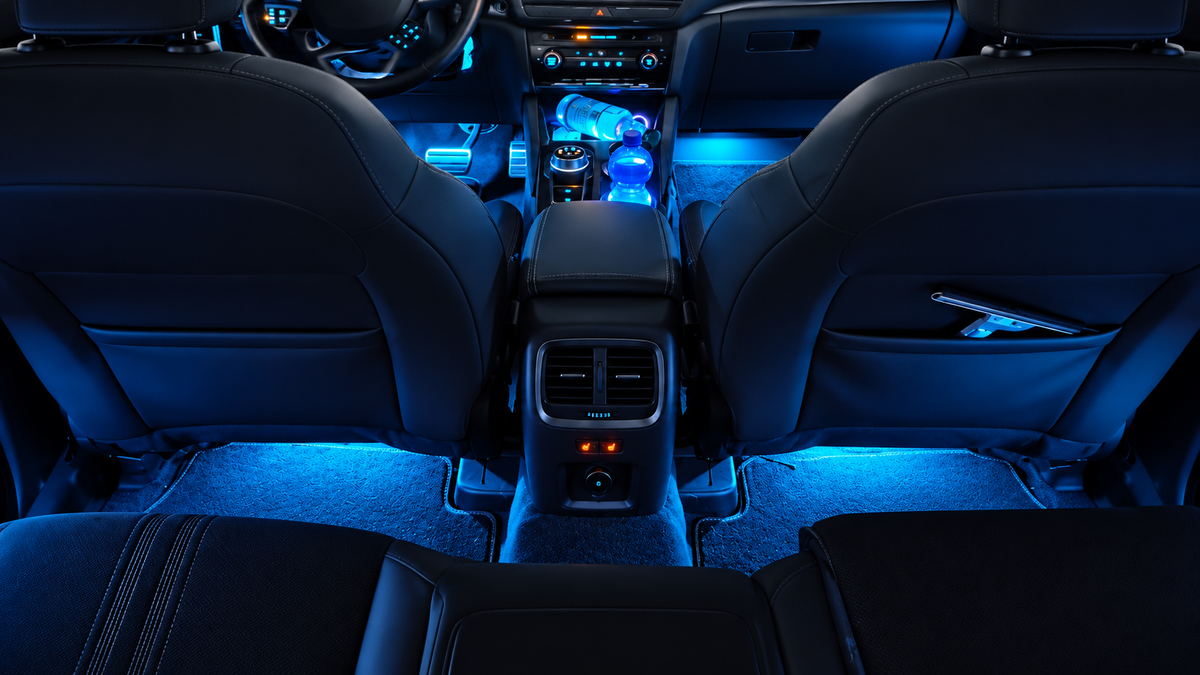

4. Fit the rear lamps

   The rear lamps come preinstalled in their dedicated holders. Connect them and clip the holders into place beneath the front seats.

Want a closer look? Explore our video tutorials and detailed installation guides below.

1. Remove the original front lamps

   Unclip both factory front footwell lamps and unplug their connectors.

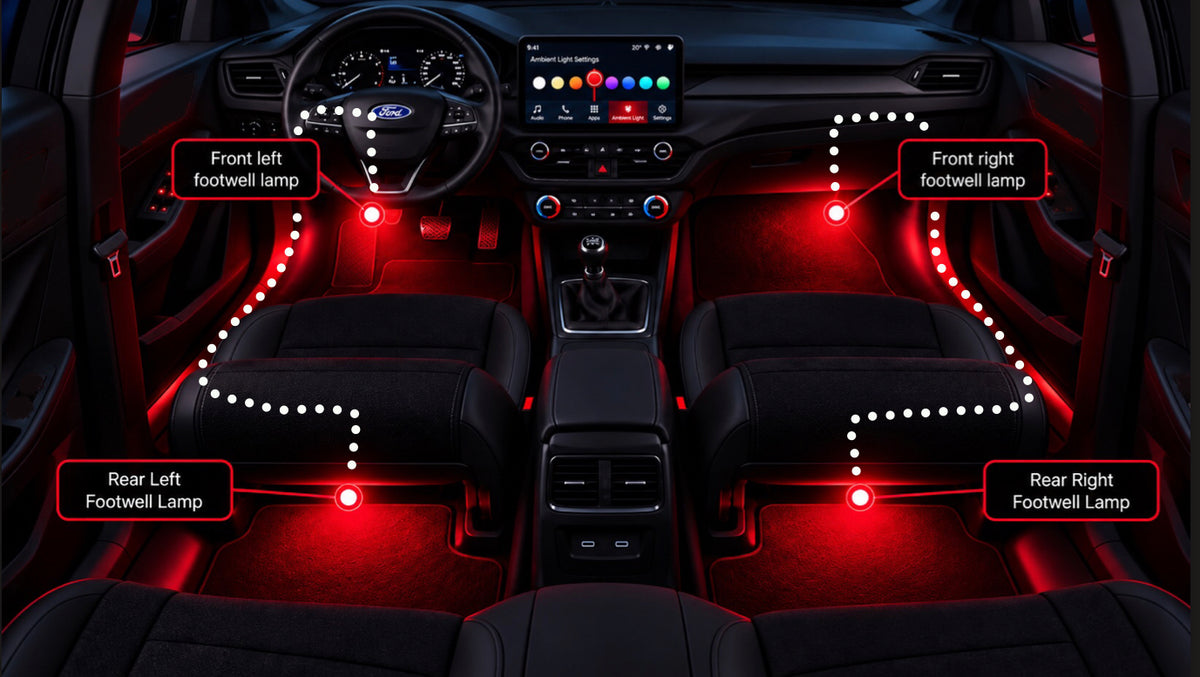

2. Connect the harnesses

   Plug each supplied harness into the factory front footwell connector on the same side. Two separate harnesses power the left and right sides independently.

3. Fit the new front lamps

   Connect the FlickOn X11 front lamps to the harnesses and clip them into the original mounting slots.

4. Route the rear wiring

   Run each harness along the sill on the same side, then use the supplied nylon pulling wire to guide it beneath the carpet to the area under the front seat.

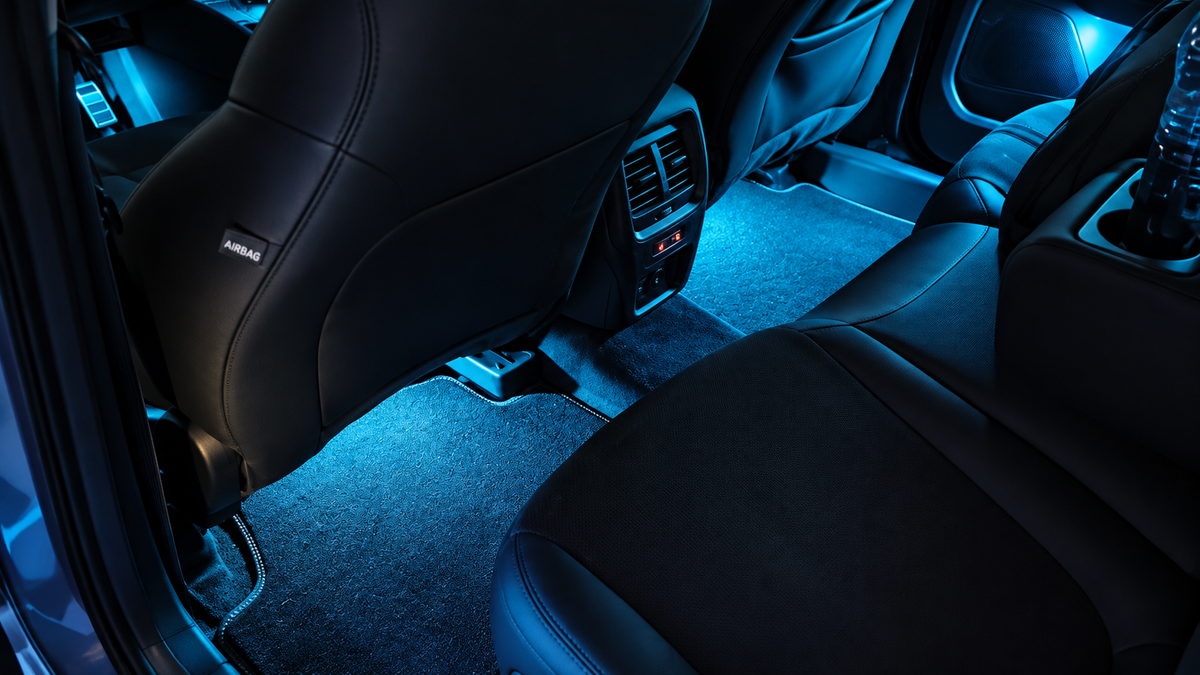

5. Fit the rear lamps

   The rear lamps come preinstalled in their dedicated holders. Connect them and click the holders into place beneath the front seats.

Want a closer look? Explore our video tutorials and detailed installation guides below.
